VenturePro Fusion
YXYK-552314-E | YXYK-652314-E | YXYK-752314-E | YXYK-852314-E

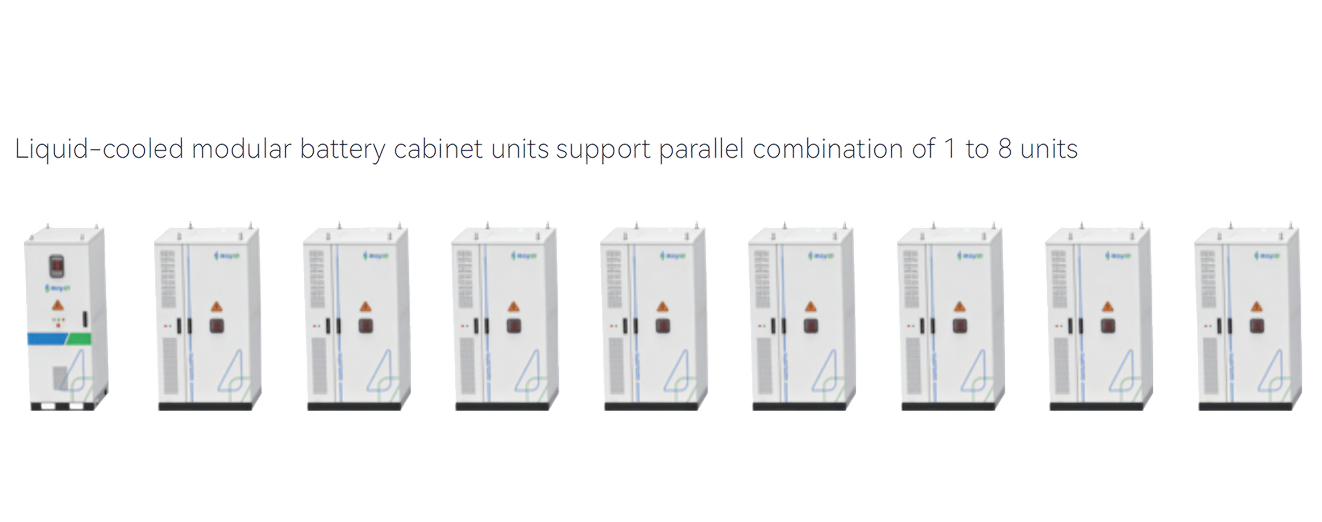

VenturePro Fusion is an intelligent, modular and fexibly confgured product consisting of 1 control cabinet and 1 to 8 VenturePro batter cabinets, with a single system meeting energy demands from 0.261 MWh to 3.344 MWh. VenturePro Fusion integrates liquid-cooled modules, a new-generation BMS control system, an intelligent liquid-cooled temperature control system and an active fre protection system, suitable for applications such as PV-storage integration, wind-storage integration and microgrids.
Product Features
-
System Efciency
Adopts lithium iron phosphate batteries with a DC efciency of up to 93%.
-
Flexible Expansion Solution
Expansion pors are resered on control cabinets and batter cabinets to suppor parallel expansion of multiple cabinets, enabling fexible system capacity confguration based on project requirements.
-
Dual Protection System
Dual hardware and software protection for the main circuit, coupled with independent batter cabinets and an active fre protection system to ensure operational safety.
-
Easy and Fast Installation
Adopts a standardized quick-connect interace design to simplify on-site installation procedures.

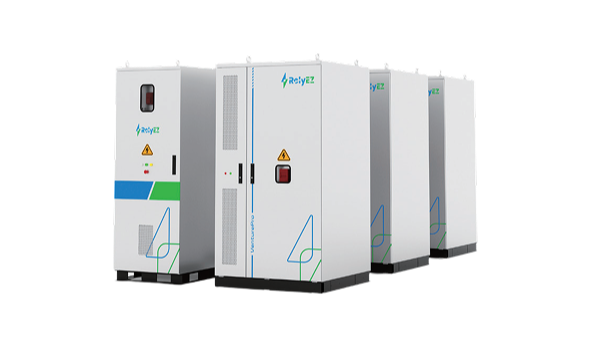

LIQUID-COOLED MODULAR BATTERY RACK INTEGRATION
Technical Specifications
-
YXYK-552314-E
-
YXYK-652314-E
-
YXYK-752314-E
-
YXYK-852314-E
-
CONTROL CABINET PARAMETERS
| Item | YXYK-552314-E |
| Battery Parameters | |
| Configuration | 1P260S |
| Nominal Energy | 261.248 kWh |
| Nominal Voltage | DC 832 V |
| Voltage Range | DC 728-936 V |
| Charge/Discharge Efficiency | MAX 93% |
| System Parameters | |
| Rated Charge/Discharge Current | 157 A |
| Max Charge/Discharge Current | 179.4 A |
| Rated Charge/Discharge Power | 130.642 kW |
| Auxiliary Power Voltage | AC 220V, 50Hz / 60 Hz |
| Auxiliary Power Consumption | MAX 3.7 kW |
| Basic Parameters | |
| Operating Temperature | -30~55 ℃ |
| Storage Temperature | -30~55 ℃ |
| Dimensions (LxWxH) | 1350x1310x2434 (mm) |
| Weight | ≤2.68 t |
| IP Rating | IP54 |
| Fire Protection Medium | Aerosol |
| Cooling Method | Liquid cooling |
| Application Altitude | ≤2000 m<3000 m (optional, derated) |
| Certifications | |
| Battery Cabinet/Cluster | UL 60730-1, UL9540, UL1973, UL9540A, IEC 62619, IEC 60730-1, IEC 63056, IEC 62477-1, UN 38.3, UN 3480 |
| Battery System | UL9540, FCC Part 15B, IEC 62477-1, IEC 61000-6-2/4, IEC 62933 |
| Item | YXYK-652314-E |
| Battery Parameters | |
| Configuration | 1P312S |
| Nominal Energy | 313.498 kWh |
| Nominal Voltage | DC 998.4 V |
| Voltage Range | DC 873.6-1123.2 V |
| Charge/Discharge Efficiency | MAX 93% |
| System Parameters | |
| Rated Charge/Discharge Current | 157 A |
| Max Charge/Discharge Current | 179.4 A |
| Rated Charge/Discharge Power | 156.749 kW |
| Auxiliary Power Voltage | AC 220V, 50Hz / 60 Hz |
| Auxiliary Power Consumption | MAX 3.7 kW |
| Basic Parameters | |
| Operating Temperature | -30~55 ℃ |
| Storage Temperature | -30~55 ℃ |
| Dimensions (LxWxH) | 1350x1310x2434 (mm) |
| Weight | ≤3.0 t |
| IP Rating | IP54 |
| Fire Protection Medium | Aerosol |
| Cooling Method | Liquid cooling |
| Application Altitude | ≤2000 m<3000 m (optional, derated) |
| Certifications | |
| Battery Cabinet/Cluster | UL 60730-1, UL9540, UL1973, UL9540A, IEC 62619, IEC 60730-1, IEC 63056, IEC 62477-1, UN 38.3, UN 3480 |
| Battery System | UL9540, FCC Part 15B, IEC 62477-1, IEC 61000-6-2/4, IEC 62933 |
| Item | YXYK-752314-E |
| Battery Parameters | |
| Configuration | 1P364S |
| Nominal Energy | 365.747 kWh |
| Nominal Voltage | DC 1164.8 V |
| Voltage Range | DC 1019.2-1310.4 V |
| Charge/Discharge Efficiency | MAX 93% |
| System Parameters | |
| Rated Charge/Discharge Current | 157 A |
| Max Charge/Discharge Current | 179.4 A |
| Rated Charge/Discharge Power | 182.874 kW |
| Auxiliary Power Voltage | AC 220V, 50Hz / 60 Hz |
| Auxiliary Power Consumption | MAX 3.7 kW |
| Basic Parameters | |
| Operating Temperature | -30~55 ℃ |
| Storage Temperature | -30~55 ℃ |
| Dimensions (LxWxH) | 1350x1310x2434 (mm) |
| Weight | ≤3.33 t |
| IP Rating | IP54 |
| Fire Protection Medium | Aerosol |
| Cooling Method | Liquid cooling |
| Application Altitude | ≤2000 m<3000 m (optional, derated) |
| Certifications | |
| Battery Cabinet/Cluster | UL 60730-1, UL9540, UL1973, UL9540A, IEC 62619, IEC 60730-1, IEC 63056, IEC 62477-1, UN 38.3, UN 3480 |
| Battery System | UL9540, FCC Part 15B, IEC 62477-1, IEC 61000-6-2/4, IEC 62933 |
| Item | YXYK-852314-E |
| Battery Parameters | |
| Configuration | 1P416S |
| Nominal Energy | 417.997 kWh |
| Nominal Voltage | DC 1331.2 V |
| Voltage Range | DC 1164.8-1497.6 V |
| Charge/Discharge Efficiency | MAX 93% |
| System Parameters | |
| Rated Charge/Discharge Current | 157 A |
| Max Charge/Discharge Current | 179.4 A |
| Rated Charge/Discharge Power | 208.998 kW |
| Auxiliary Power Voltage | AC 220V, 50Hz / 60 Hz |
| Auxiliary Power Consumption | MAX 3.7 kW |
| Basic Parameters | |
| Operating Temperature | -30~55 ℃ |
| Storage Temperature | -30~55 ℃ |
| Dimensions (LxWxH) | 1350x1310x2434 (mm) |
| Weight | ≤3.65 t |
| IP Rating | IP54 |
| Fire Protection Medium | Aerosol |
| Cooling Method | Liquid cooling |
| Application Altitude | ≤2000 m<3000 m (optional, derated) |
| Certifications | |
| Battery Cabinet/Cluster | UL 60730-1, UL9540, UL1973, UL9540A, IEC 62619, IEC 60730-1, IEC 63056, IEC 62477-1, UN 38.3, UN 3480 |
| Battery System | UL9540, FCC Part 15B, IEC 62477-1, IEC 61000-6-2/4, IEC 62933 |
| Item | Specification |
| System Parameters | |
| Voltage Range | DC 728~1497.6 V |
| Max Current | 1435.43 A |
| Max Power | 1671.984 kW |
| Auxiliary Power Consumption | AC 480V（UL）/AC 400V（IEC）, 50Hz / 60Hz |
| Auxiliary Power Voltage | MAX 30 kW |
| Basic Parameters | |
| Operating Temperature | -30~55 ℃ |
| Storage Temperature | -30~55 ℃ |
| Dimensions (LxWxH) | 1350x900x2414(mm) |
| Weight | EU version ≤0.75 t, US version ≤1.0 t |
| IP Rating | IP54 |
| Application Altitude | ≤2000 m/<3000 m (optional, derated) |
