GridUltra 4180 / GridUltra 5016

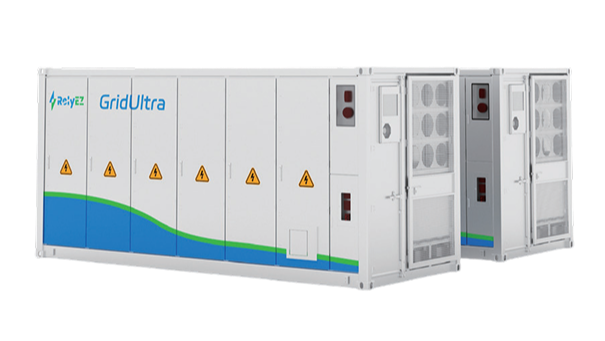

GridUltra Liquid-Cooled Energy Storage Battery System
Uses customized non-walk-in containers, with a modular design that improves space utilization within the cabin. Te advanced liquid cooling circulation design helps suppress the spread of batter thermal runaway, extending the serice life of the energy storage system and improving system safety.
Product Features
-
Modular Container System
Uses customized non-walk-in containers with a modular design, high integration, supporing fast deliver, quick installation, and maintenance.
-
Long-Life Liquid-Cooled Batter System
The liquid-cooled batter system has excellent energy efciency, with a cycle life ≥8000 cycles and a design life of approximately 15 years. Ensures stable operation.
-
Smar Liquid-Cooled Safety Comparment
The batter comparment has an IP55 rating, features a smar fre protection system design with multi-point monitoring and warning, and has fre extinguishing capability. Te liquid cooling system delivers excellent batter temperature uniformity, with a system cell temperature diference ≤5°C.
Product Composition
-
Energy Storage System
Te batter comparment contains 10/12 batter racks, 1 AC Distribution Panel, 1 fre protection system, and 1 liquid cooling system.
-
Batter Cluster
Each batter cluster consists of 8 liquid-cooled batter modules and 1 high-voltage control box connected in series.
-
Battery Module
Each individual batter module is composed of 52 314 Ah lithium iron phosphate cells confgured in a 1P52S arrangement. It features a compact structure, wide temperature tolerance, long serice life, IP55 protection, and multiple safety features.
Technical Specifications
-
GridUltra 4180
-
GridUltra 5016
| Item | GridUltra 4180 |
| Battery Parameters | |
| Configuration | 10P416S |
| Nominal Energy | 4179.97 kWh |
| Nominal Voltage | DC 1331.2 V |
| Voltage Range | DC 1164.8~1497.6 V |
| System Parameters(0.25P) | |
| Rated Charge Current | 785 A |
| Max Charge Current | 1000 A |
| Rated Charge Power | 1045 kW |
| Rated Discharge Current | 785 A |
| Max Discharge Current | 1000 A |
| Rated Discharge Power | 1045 kW |
| Auxiliary Power Voltage | Adapted to local grid voltage |
| Auxiliary Power Consumption | Max 35 kW |
| Operating Temperature | -30~50℃ |
| Application Altitude | ≤2000 m/≤3000 m (optional, derated) |
| Battery Compartment Short Circuit Current | 12.5 kA*10 |
| DC Output Branch Quantity | Single Output |
| BMS and PCS Communication Method | Supports CAN/Modbus485/TCP communication, CAN communication recommended |
| Basic Parameters | |
| Product Dimensions (LxWxH) | 6058x2438x2896 (mm) |
| Weight | Approximately 36.5 t |
| IP Rating | IP55 |
| Cooling Method | Liquid cooling |
| Certifications/Reports | UL 60730-1、UL9540、UL1973、UL9540A、 IEC 62619、IEC 60730-1、IEC 63056、 IEC 62477-1、IEC 61000-6-2/4、(EU) 2023/1542、UN 38.3、UN 3536 |
| Item | GridUltra 5016 |
| Battery Parameters | |
| Configuration | 12P416S |
| Nominal Energy | 5015.9616 kWh |
| Nominal Voltage | DC 1331.2 V |
| Voltage Range | DC 1164.8~1497.6 V |
| System Parameters(0.5P) | |
| Rated Charge Current | 1884 A |
| Max Charge Current | 2411 A |
| Rated Charge Power | 2500 kW |
| Rated Discharge Current | 1884 A |
| Max Discharge Current | 2411 A |
| Rated Discharge Power | 2500 kW |
| Auxiliary Power Voltage | Adapted to local grid voltage |
| Auxiliary Power Consumption | Max 45 kW |
| Operating Temperature | -30~50℃ |
| Application Altitude | ≤2000 m/≤3000 m (optional, derated) |
| Battery Compartment Short Circuit Current | 12.5 kA*12 |
| DC Output Branch Quantity | Single Output |
| BMS and PCS Communication Method | Supports CAN/Modbus485/TCP communication, CAN communication recommended |
| Basic Parameters | |
| Product Dimensions (LxWxH) | 6058x2438x2896 (mm) |
| Weight | Approximately 42 t |
| IP Rating | IP55 |
| Cooling Method | Liquid cooling |
| Certifications/Reports | UL 60730-1、UL9540、UL1973、UL9540A、 IEC 62619、IEC 60730-1、IEC 63056、 IEC 62477-1、IEC 61000-6-2/4、(EU) 2023/1542、UN 38.3、UN 3536 |
