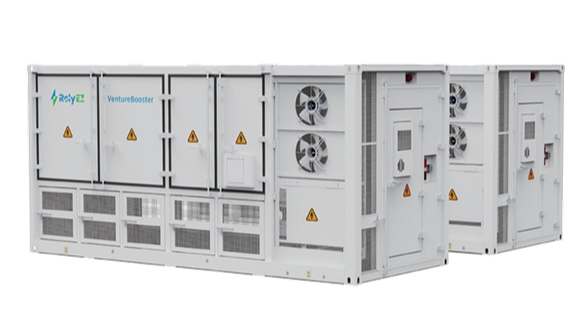

VentureBooster 800
VentureBooster Liquid-Cooled Energy Storage Battery System
Features an integrated AC-DC design. "One Cluster, One Management" enables fne-grained energy management and status diagnostics at the rack level, fundamentally solving the "cask efect" and improving system energy utilization. Te advanced liquid cooling circulation design reduces the impact of batter thermal runaway propagation, efectively enhancing overall system safety and extending the full serice life of energy storage batteries, providing a safer technical guarantee for system operation.
Product Features
-
Technical Advantages
Simplifed architecture: Eliminates the need for energy storage transformers.Higher efciency: Reduces conversion loss by approximately 1%. Lower initial investment: Smaller footprint, fewer components, and lower costs.
-
Application Scenarios
Suitable for expanding existing 800 V photovoltaic systems.
-
Customer Value
Better investment returns: Saves transformer costs for faster payback. Lower total cost of ownership: Higher energy output with simpler maintenance. Flexible deployment: Easy expansion, can be directly adapted to existing photovoltaic sites.
Product Composition
-
Energy Storage System
The battery compartment contains 5 battery clusters, 1 control cabinet, 1 fire protection system, and 1 liquid cooling system.
-
Battery Cluster
Each battery cluster consists of 4 liquid-cooled battery modules and 1 high-voltage control box connected in series.
-
Liquid-Cooled Energy Storage Modules
Each liquid-cooled energy storage module consists of 104 314 Ah lithium iron phosphate cells configured in a 1P104S arrangement. It features high energy density, wide operating temperature range, long service life, high protection rating, and multiple safety protections.

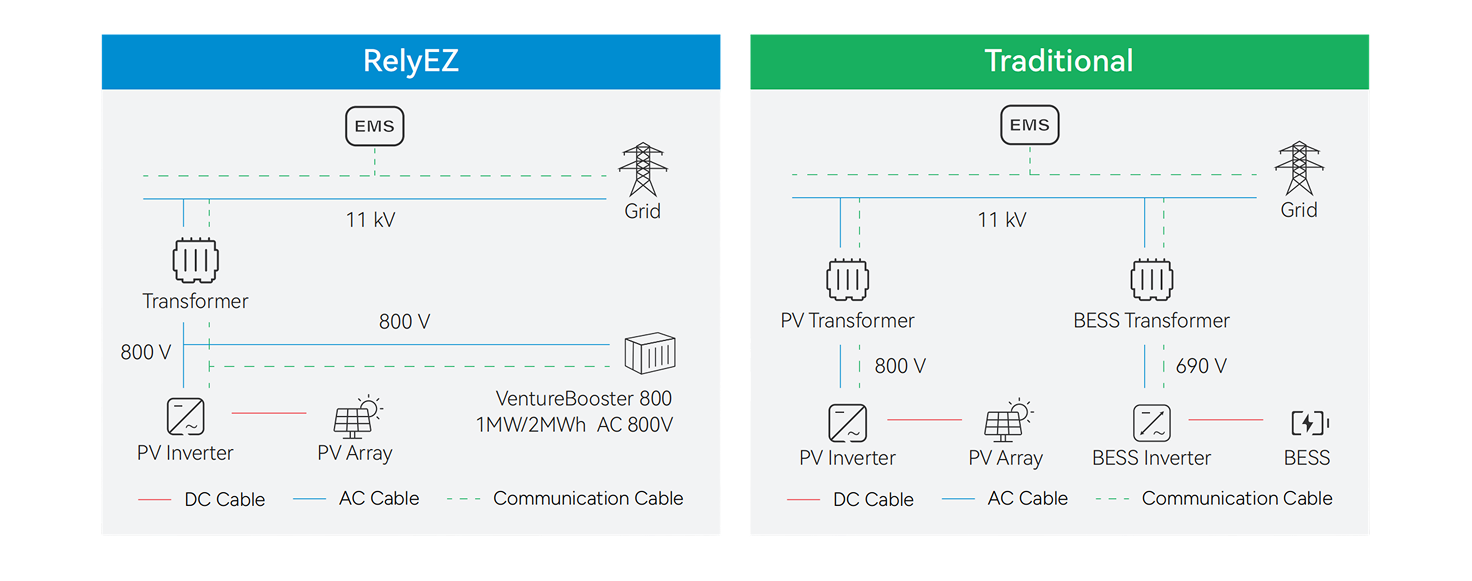

800 V AC-COUPLED SOLAR-STORAGE SOLUTION
Technical Specifications
| Item | VentureBooster 800 |
| DC Side Parameters (0.5P) | |
| System Nominal Energy | 5x418 kWh |
| Single Unit Configuration | 416 S |
| Rated DC Current | 157 A |
| Max DC Current | 179.4 A |
| DC Voltage Range | DC 1164.8~1497.6 V |
| System Parameters | |
| Rated AC Power | 5x200 kW |
| Rated AC Voltage | AC 800 V |
| Rated Frequency | 50 / 60 Hz |
| Rated Current | 5x145 A |
| Power Factor | 0.99/-1~1 |
| Basic Parameters | |
| Max System Efficiency | 88% (excluding auxiliary power) |
| Fire Suppressant | Electrically Activated Aerosol |
| Auxiliary Power Consumption | 22 kW |
| Cooling Method | Liquid Cooling for Battery Modules / Air Cooling for PCS |
| Dimensions (LxWxH) | 6058x2438x2896 mm |
| Weight | Approximately 23.5 t |
| Operating Temperature | -30~+55℃ |
| Operating Humidity | 0~95% |
| IP Rating | IP55 |
| Altitude | ≤2000 m/<3000 m (optional, derated) |
| Certifications/Reports | IEC 62619、IEC 60730-1、IEC 63056、IEC 62477-1、IEC 61000-6-2/4、(EU) 2023/1542、UN 38.3、UN 3536 |
