VenturePro 112

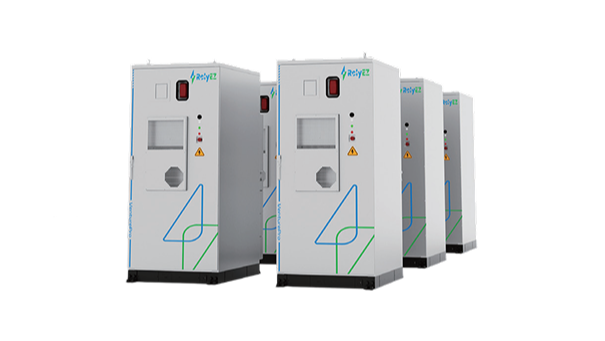

VenturePro Air-Cooled Commercial andIndustrial Integrated Cabinet
Features an IP54-rated outdoor enclosure, and the modular design improves space utilization inside the cabinet. Te advanced air-cooling circulation concept, intelligent temperature control architecture, smar fre protection and pressure relief system, as well as intelligent energy management and dispatch system enable efective thermal management for the air-cooled energy storage system, ensure safe operation and monitor cell status in real time.
Product Features
-
Modular Design
Adopts a modular design for fexible expansion, with the cabinet directly outputting alternating current and supporing parallel connection of multiple cabinets on the AC side.
-
Air-Cooled Topology for Optimal Efciency
Adopts air cooling and PCS three-level topology, delivering high system circulation efciency with a peak efciency of up to 97.8%.
-
Precise Single-Cluster Control for Safety and Longevity
Adopts precise single-cluster control and independent DC-side architecture to reduce shor-circuit current; dual electrical and fre protection isolation is realized between cabinets. Cell temperature diference is controlled within 4.5 °C, efectively ensuring system safety and extending cycle life.

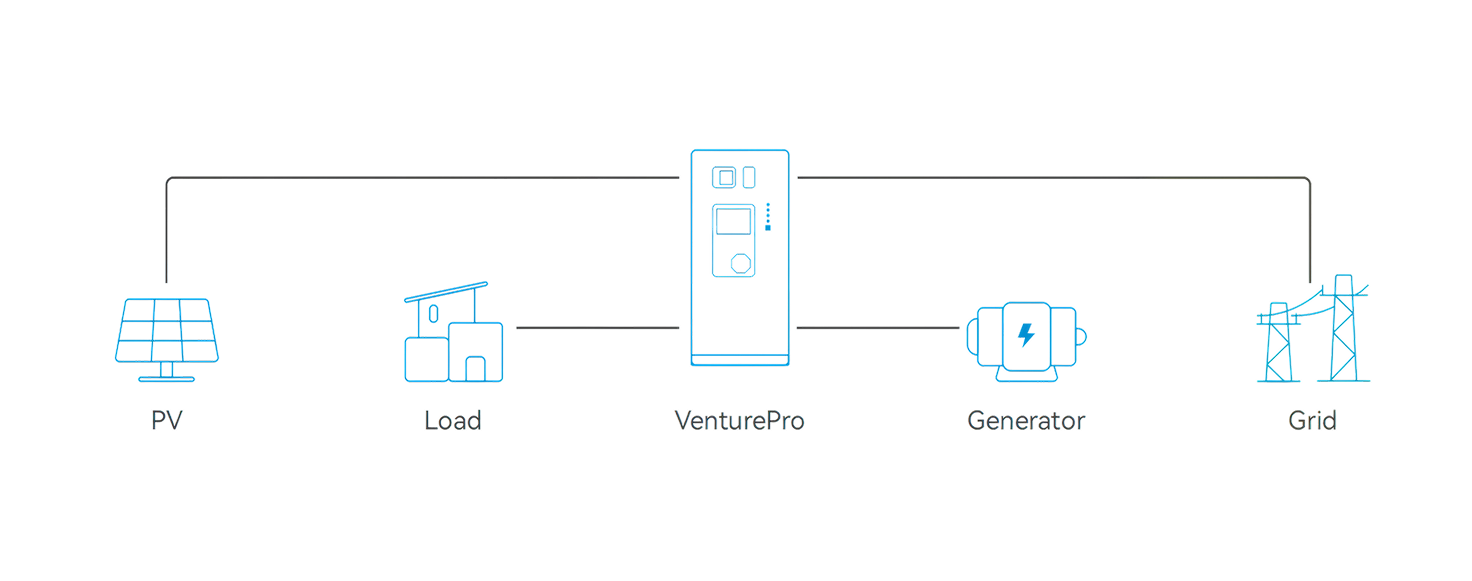

APPLICATION SCENARIOS OF AIR-COOLED NDUSTRIAL AND COMMERCIAL INTEGRATED CABINETS
Technical Specifications
| Item | VenturePro 112 |
| Battery Parameters | |
| Nominal Energy | 112.538 kWh |
| Max Current | 179.4 A |
| Rated Charge/Discharge Rate | 0.5 P |
| Battery Voltage Range | DC 313.6~403.2 V |
| AC Side Parameters | |
| Rated AC Power | 50 kW |
| Rated AC Voltage | 400 V±15% |
| Rated Frequency | 50/60 Hz ± 5 Hz |
| Rated Current | 76 A |
| PV Parameters | |
| Max PV Power | 96 kW |
| Rated Input Voltage | 600 Vd.c. |
| Start-Up Voltage | 180 Vd.c. |
| Max Input Current | 40A / 40A / 40A / 40A |
| Number of MPPTs / Max String Paths | 4/8 |
| Max Input Power per MPPT | 24 kW |
| Basic Parameters | |
| Product Dimensions (L×W×H) | 990×1300×2230(mm) |
| Weight | Approximately 1.8 t |
| Max Allowable Altitude | ≤2000 m/<3000 m (optional, derated) |
| Operating Temperature | -25 ℃ ~ 55 ℃ |
| System Cycle Life | ≥8000 cycles |
| IP Rating | Enclosure IP54 |
| Cooling Method | Air Cooling |
